Welcome to scDoRI: Single-cell Deep Multi-Omic Regulatory Inference#

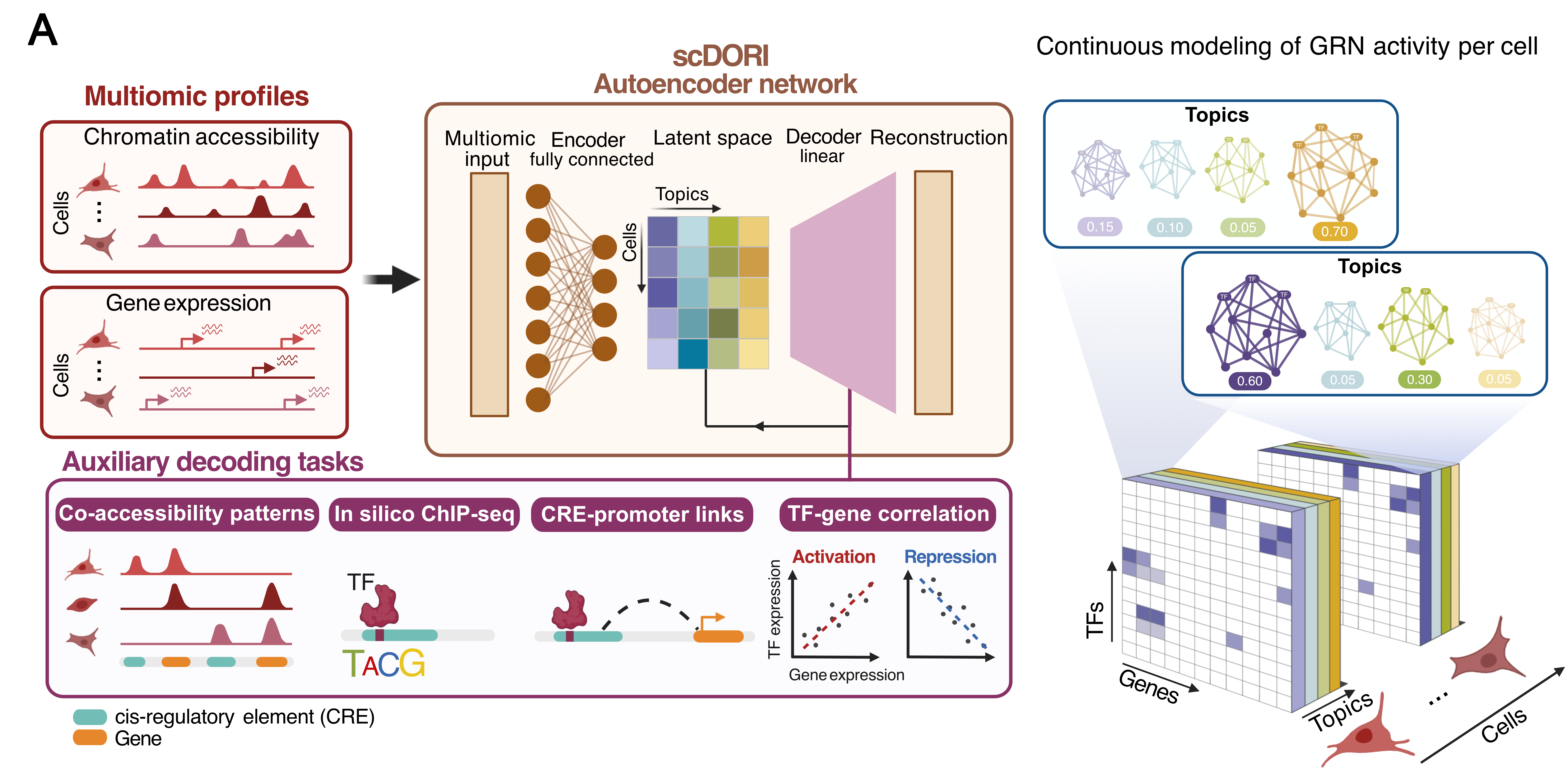

scDoRI Schematic

scDoRI jointly models single-cell RNA-seq and ATAC-seq multi-ome data to infer enhancer-mediated gene regulatory networks (eGRNs). It couples an Encoder-Decoder neural architecture with mechanistic constraints (enhancer-gene links, TF activators/repressors), yielding topics of co-accessible peaks, co-expressed genes, TF regulators and their enhancer-mediated downstream targets. By training in mini-batches, scDoRI handles large datasets while capturing continuous, cell-specific changes in gene regulation.

Key Highlights#

  • Unified approach: single model for dimensionality reduction + eGRN inference

  • Biological insights: identifies lower dimensional topics, candidate enhancer-gene links, co-regulated gene programs, TF-gene networks per topic

  • Continuous eGRN Modelling without predefined clusters: each cell is a mixture of regulatory topics, allowing assessment of fine-grained changes in regulatory programs

  • Scalable: mini-batch training for large single-cell multiome datasets

Input Requirements#

scDoRI expects single-cell multiome data with the following inputs:

  • RNA: an AnnData .h5ad object with a cells by genes raw expression counts matrix

  • ATAC: an AnnData .h5ad object with a cells by peaks raw Tn5 insertion counts matrix - Peaks must include genomic coordinates in .var with columns: chr, start, and end

These datasets must be paired i.e., RNA and ATAC should come from the same cells.

The example notebooks provided in this repository are built using the mouse gastrulation dataset from:

Model Architecture and training#

See the Model Overview & Architecture for descriptions on core features of the model including encoder–decoder design, reconstruction tasks and training scheme.

Project Layout#

  • preprocessing_pipeline/ Scripts + a config.py for data filtering, highly variable peak/gene/TF selection. Also computes in-silico ChIP-seq matrix.

  • scdori/ Core scDoRI model code + another config.py for hyperparameters (number of topics, learning rate, sparsity, etc.).

  • notebooks/ - preprocessing.ipynb: Load & filter multi-ome data, obtain in-silico ChIP-seq matrix and other preprocessing steps. - training.ipynb: Train the scDoRI autoencoder with mini-batches, produce eGRN outputs.

  • environment.yml Conda environment specifying dependencies (scanpy, pytorch, etc.).

  • cisbp_motif_file Example motif DB for mouse/human. If you use a custom motif file, set the path in the config.

Installation and Usage#

  1. Clone this repo + create the environment:

    git clone https://github.com/saraswatmanu/scDoRI.git
cd scDoRI
conda env create -f environment.yml
conda activate scdori_env

  2. Edit config files: - preprocessing_pipeline/config.py to specify location of RNA and ATAC anndata .h5ad files, motif file, and set number of peaks/genes/TFs to train on. - scdori/config.py for scDoRI hyperparameters (number of topics, learning rate, epochs etc.)

  3. Run notebooks in order: - notebooks/preprocessing.ipynb - notebooks/training.ipynb

Caution

If using a mouse dataset, set species = "mouse" in config. For human, change accordingly and update your motif file path (cisbp or custom). Ensure consistent schema in motif meme file compared to the example cisbp file provided.

Tutorial Notebooks#

Preprocessing (Notebook 1)

  • Filter to highly variable genes/peaks/TFs

  • Compute in-silico ChIP-seq from your motif DB, peak-gene distances

  • Output processed data, insilico-chipseq matrix, peak-gene distances

Preprocessing Notebook
Training (Notebook 2)

  • Train model with mini-batches

  • Infer topics and TF?gene networks

  • Downstream analysis using inferred eGRNs and topic activities

Loading and preparing data for training and model initialisation

Hyperparameter and feature selection guide#

See the Hyperparameter Configuration Guide page for documentation for guidance on choosing number of features(peaks, genes, TFs) and hyperparameters(number of topics, regularisation etc)

API Reference#

See the API Reference page for documentation on:

  • preprocessing_pipeline scripts

  • scdori model scripts

These detail function usage, parameters, and advanced features.

License & Citation#

This project is under MIT License. If scDoRI aids your research, please cite our upcoming publication. For questions, open a GitHub Issue or email the maintainers.
